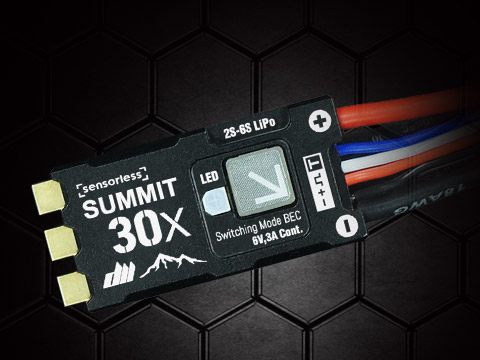

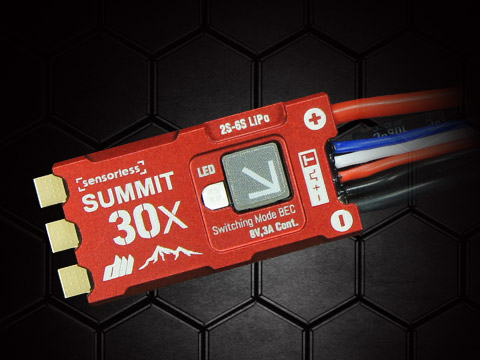

SUMMIT 30X 30A Brushless Speed Controller for Gliders

Summit X Brushless Power modulation Features:

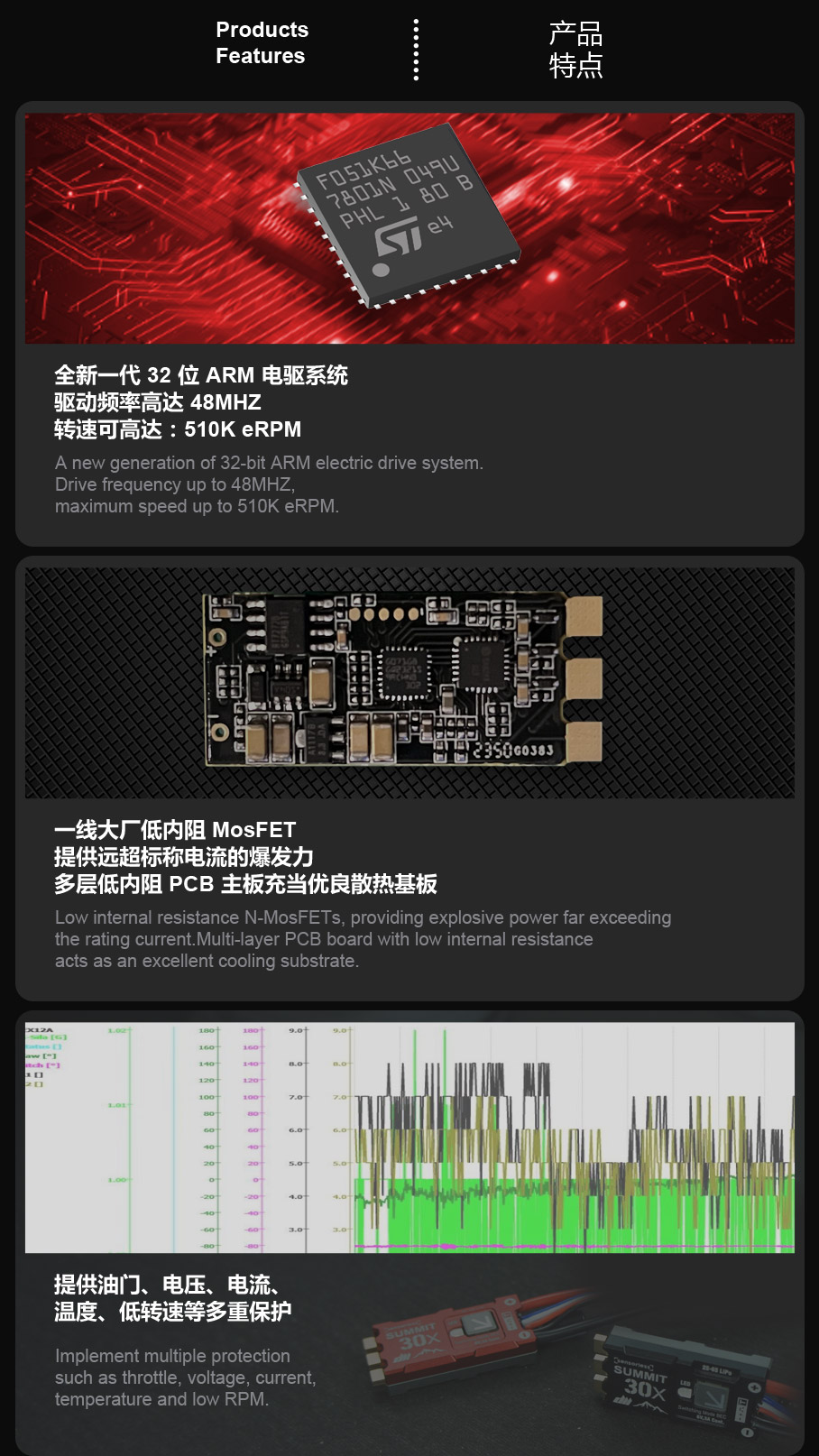

1. A new generation of 32-bit ARM electric drive system.
2. Drive frequency up to 48MHZ, maximum speed up to 510K eRPM
3. Low internal resistance N-MosFETs, providing explosive power far exceeding the rating current
4. Multi-layer PCB board with low internal resistance acts as an excellent cooling substrate

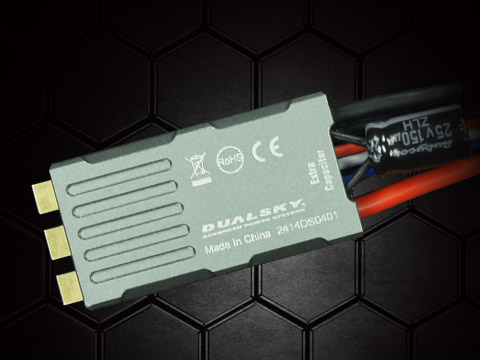

5. Thanks to the metal CNC housing, it achieves a high power to weight ratio
6. Implement multiple protection such as throttle, voltage, current, temperature and low RPM
7. Efficient driving core, abundant torque, effectively avoid Sync-Loss conditions
8. Support efficient SINE wave working mode
9. Support regenerative braking
10. Rotation direction can be set, and support bidirectional operation mode
11. In addition to PWM throttle signal, support Multishot, Oneshot, Dshot & Proshot protocols
12. Firmware can be updated, and provide rich settings

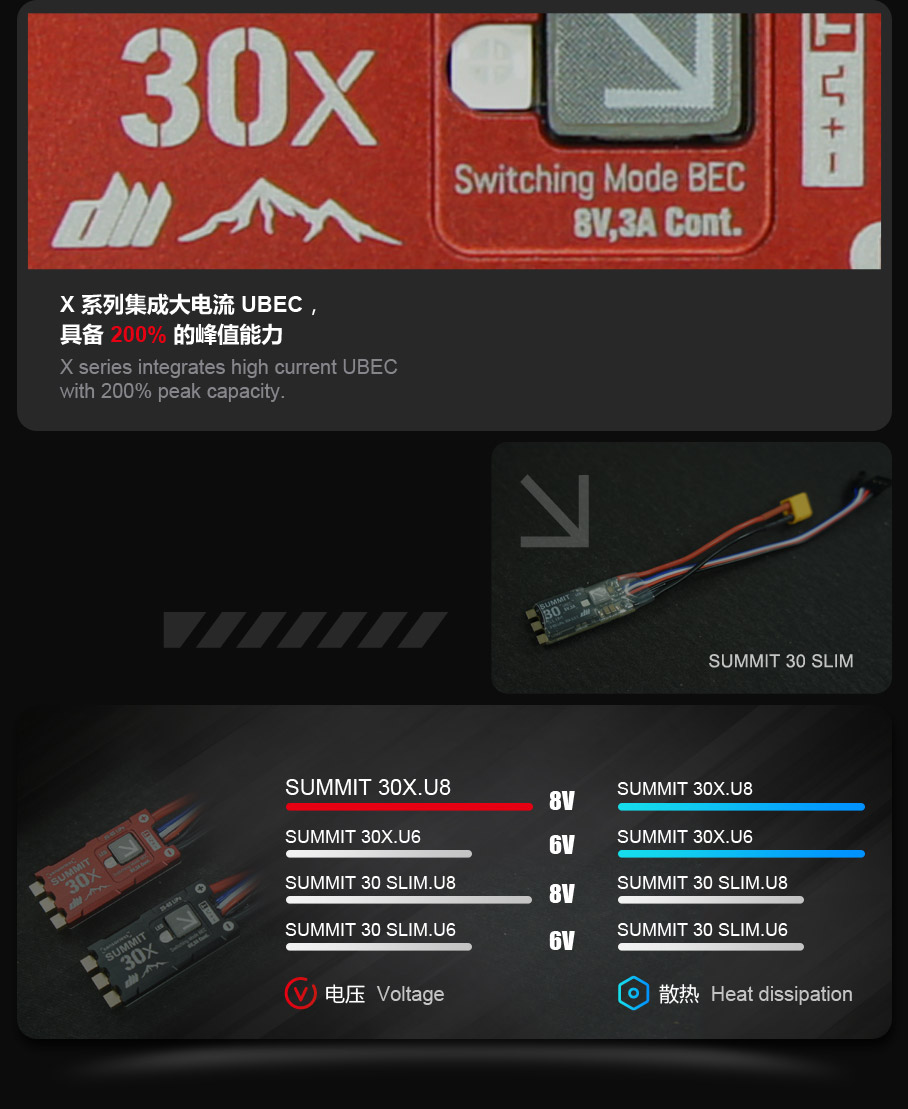

13.X series integrates high current UBEC with 200% peak capacity.

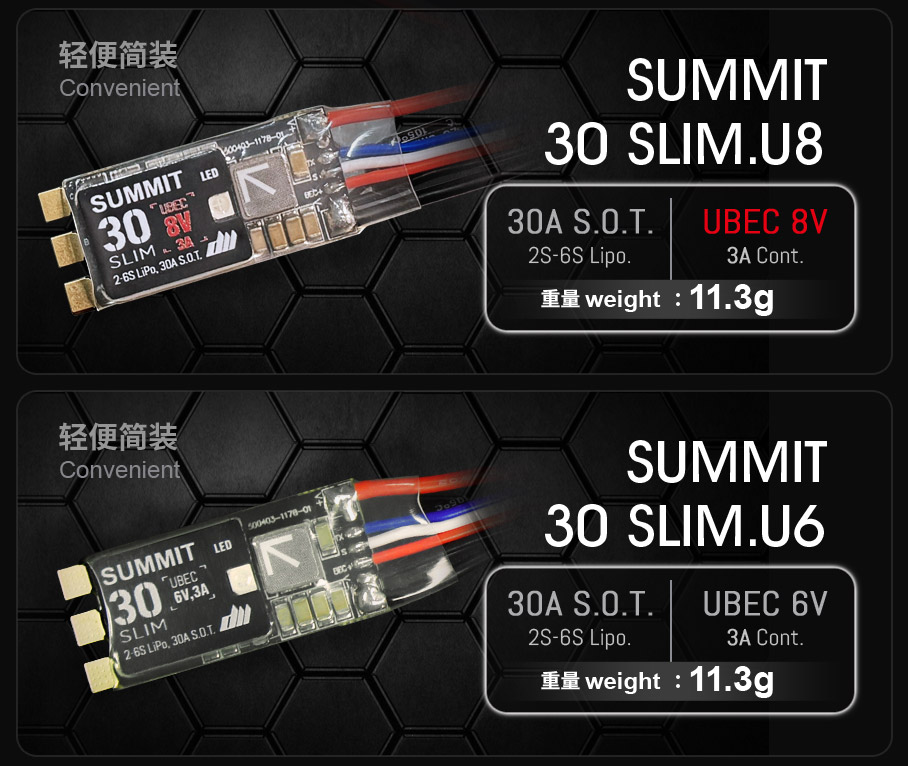

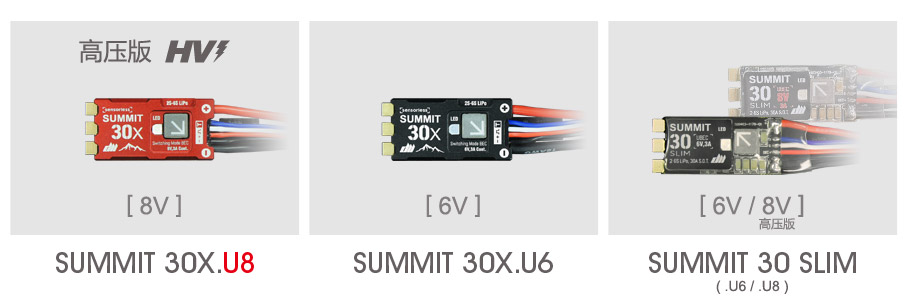

14. Slim version available for narrow fuselage models.

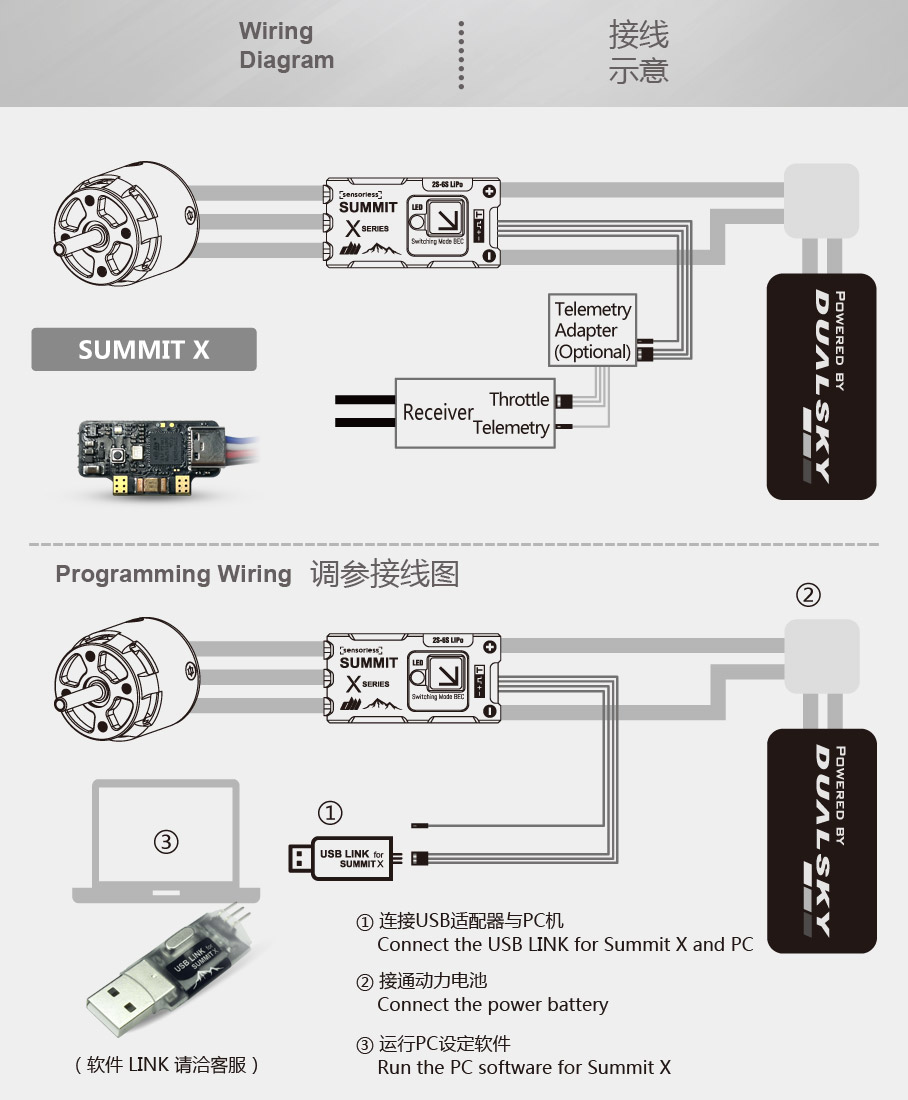

15. Supports multiple telemetry protocols through Tele-adapter.
