Xpower HED series High Energy Density LiPo packs light weight endurance.

Long-endurance battery for commercial UAV
Optimized the ratio between energy and weight, discharge 8C -20C
Produce by Dualsky new 6th Generation battery technology
Optimized the discharging characteristics in the low temperature and high altitude environment
Ensure 600+ times charge and discharge cycles
16000mAh 6s is suitable for Octa rotor with SLR aerial photograph

Product Description：

For UAV special

------------------------------------------------------

Dualsky 5th Xpower battery technology

4C charge and 25C discharge
For large size aerobatic model planes and helicopter.
4600mAh 5S HED battery is the best choice for F3A competition models
6250mAh 6s(x2) is suitable for 700-800E F3C models
Super enduring, optimize the discharging capacity
Laminated structure, adopt nano coat technology with ultra-low-IR

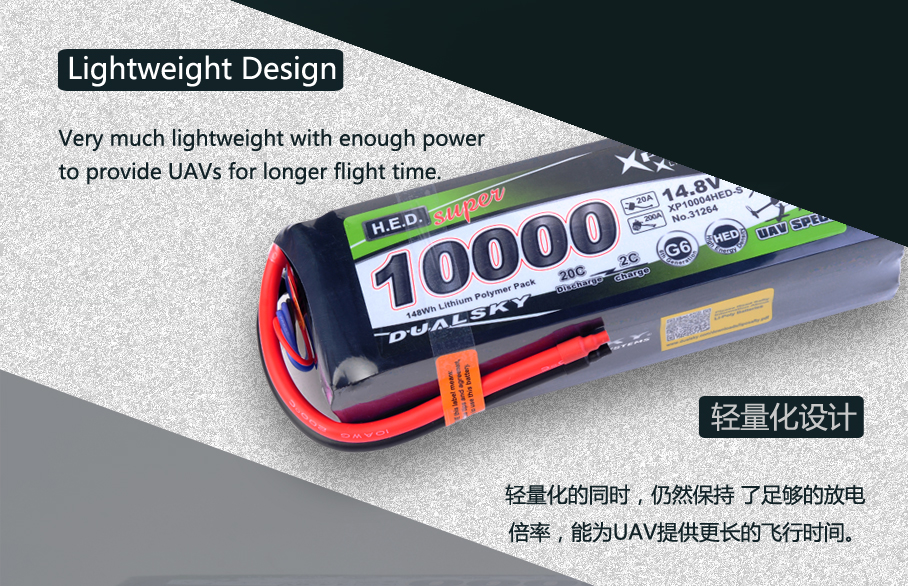

Keep as lightest at the same grade
Ensure 300+ times cycles charge and discharge without attenuation
The key materials are imported from Japan

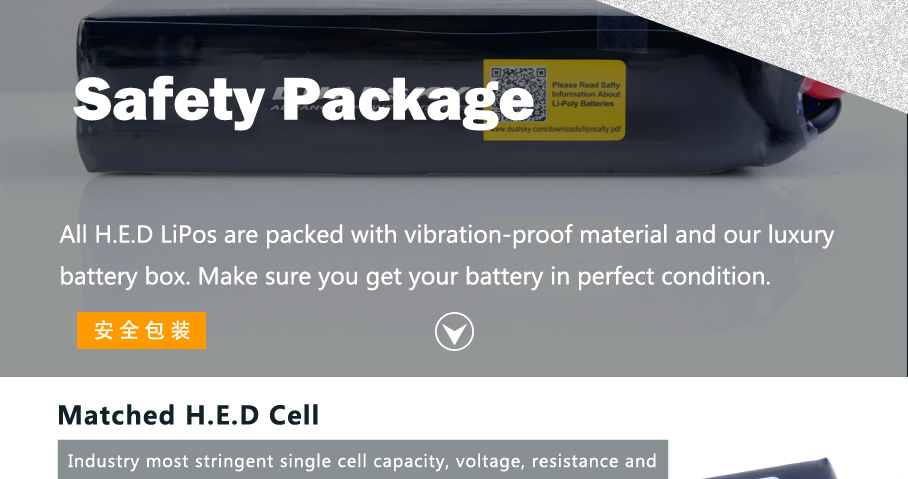

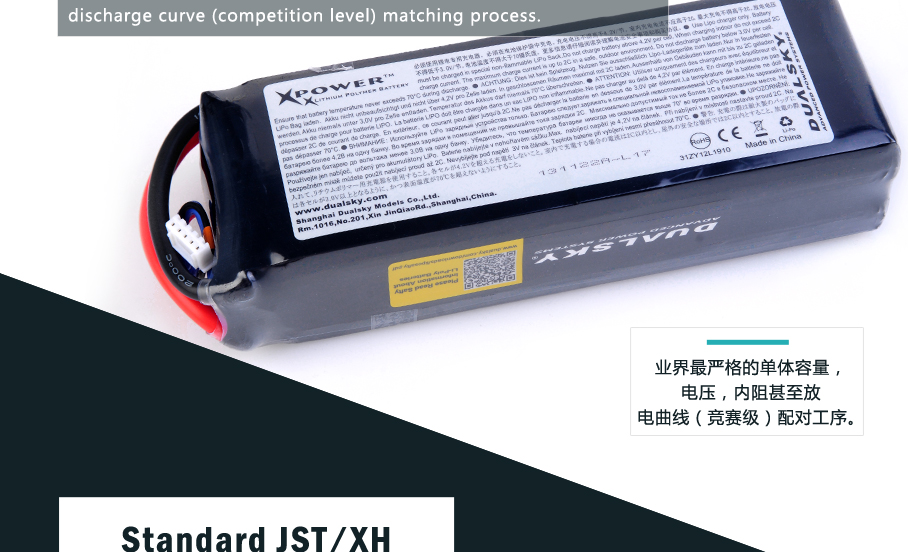

The most stringent cell capacity, voltage, resistance and even discharge curve(competition level) matching process
Light and durable with three layers soft package
High quality silver silicon wires and the roots are protected with tubes
Pre-soldered DC3 connectors, It is plug and play with Dualsky power components

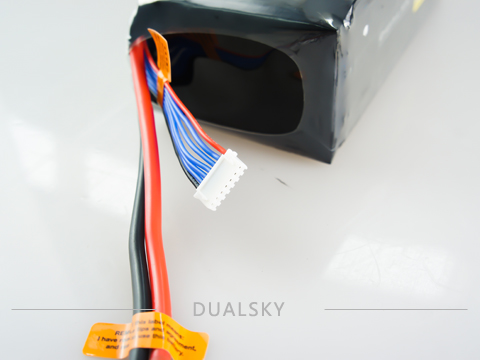

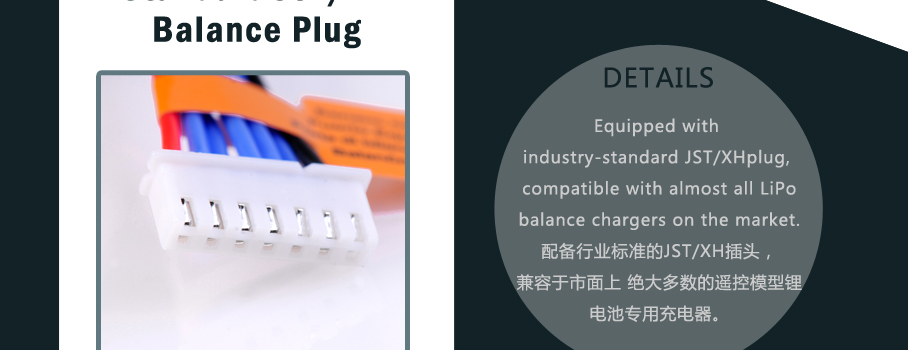

Compatible with XH balance port

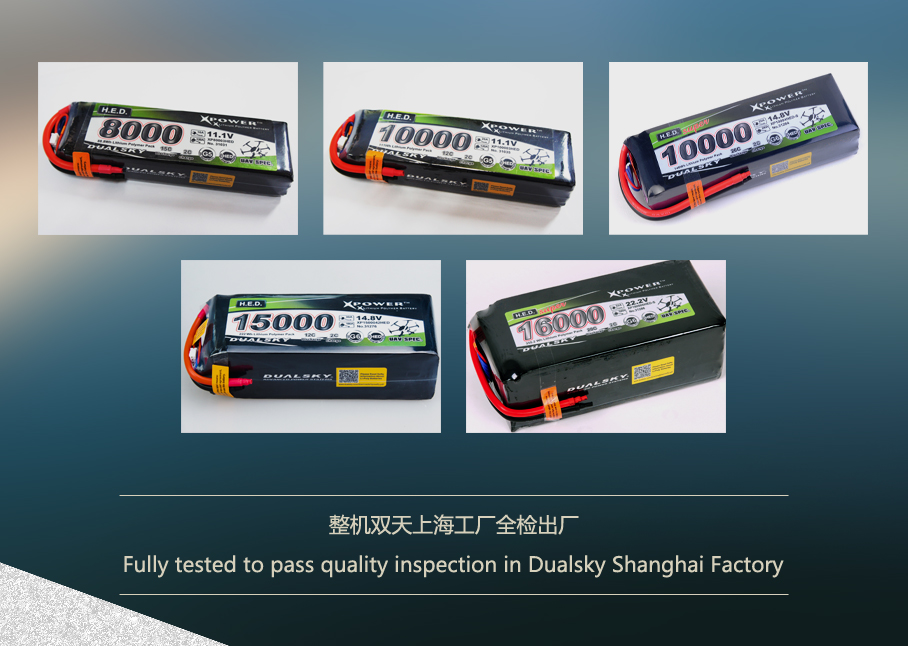

Produce in accordance with stringent export quality.

Description
Item?Number
Download

Item Name：G5 Xpower HED series -- High Energy Density LiPo packs, 25C/4C

Item No：

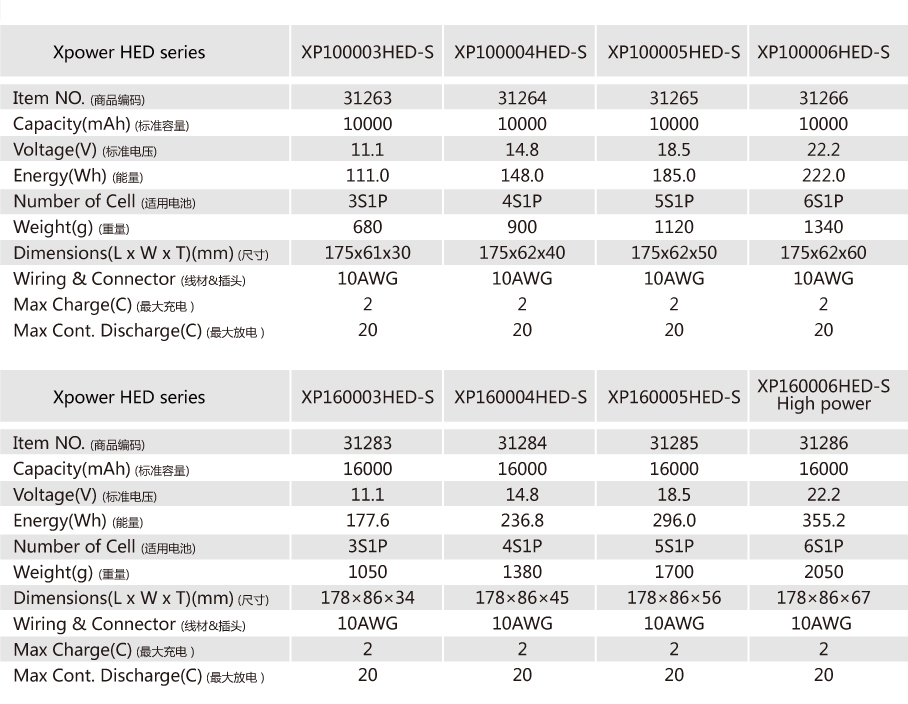

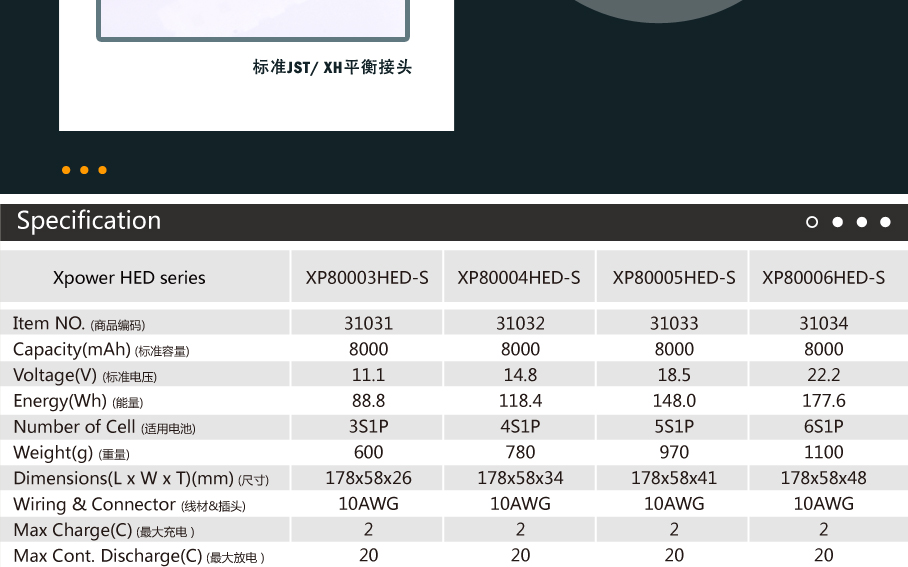

Item NO.	Description	Capacity (mAh)	Voltage (V)	Energy (Wh)	Number of Cell	Weight (g)*	Dimensions L x W x T (mm)	Wiring & Connector	Max Charge	Max Cont. Discharge

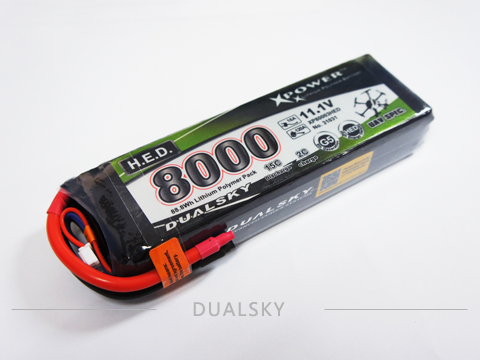

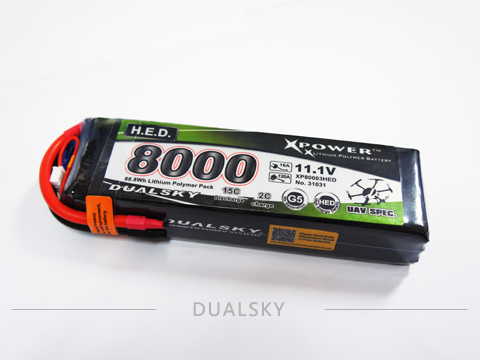

31031	XP80003HED-S	8000	11.1	88.8	3S1P	600	178x58x26	10AWG	2C	20C
31032	XP80004HED-S	8000	14.8	118.4	4S1P	780	178x58x34	10AWG	2C	20C
31033	XP80005HED-S	8000	18.5	148.0	5S1P	970	178x58x41	10AWG	2C	20C
31034	XP80006HED-S	8000	22.2	177.6	6S1P	1100	178x58x48	10AWG	2C	20C

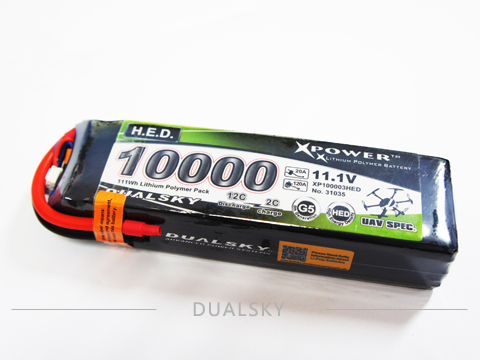

31263	XP100003HED-S	10000	11.1	111.0	3S1P	680	175x61x30	10AWG	2C	20C
31264	XP100004HED-S	10000	14.8	148.0	4S1P	900	175x62x40	10AWG	2C	20C
31265	XP100005HED-S	10000	18.5	185.0	5S1P	1120	175x62x50	10AWG	2C	20C
31266	XP100006HED-S	10000	22.2	222.0	6S1P	1340	175x62x60	10AWG	2C	20C
31283	XP160003HED-S,	16000	11.1	177.6	3S1P	1050g	178×86×34	10AWG	2C	20C
31284	XP160004HED-S,	16000	14.8	236.8	4S1P	1380g	178×86×45	10AWG	2C	20C
31285	XP160005HED-S,	16000	18.5	296.0	5S1P	1700g	178×86×56	10AWG	2C	20C
31286	XP160006HED-S, , high power	16000	22.2	355.2	6S1P	2050g	178×86×67	10AWG	2C	20C

Li-Poly Safety Tips and Buyer Agreement【PDF】

Download
