Product Description：
TY single shaft version:
The new design, breakthrough technology
The lightest of the same class

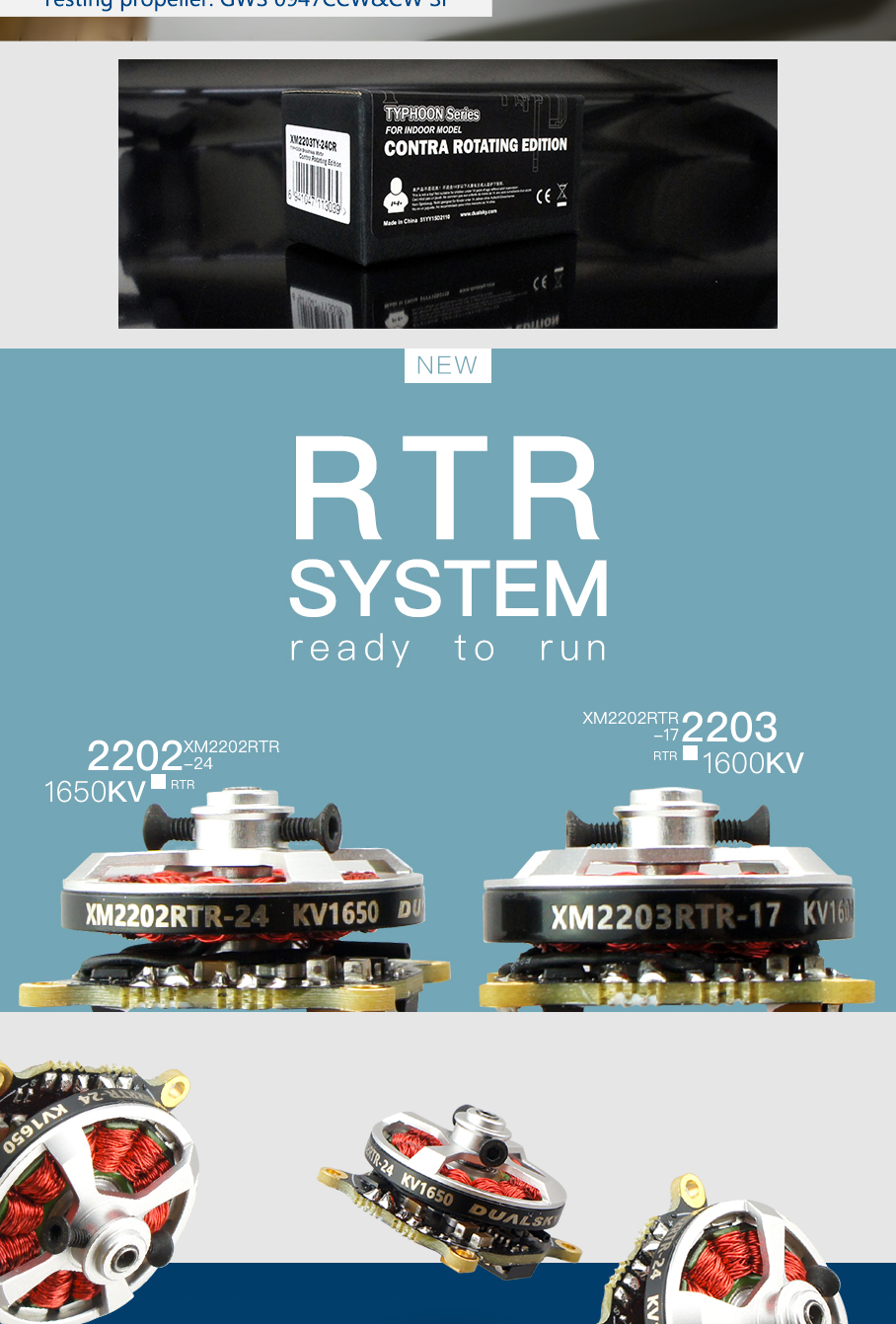

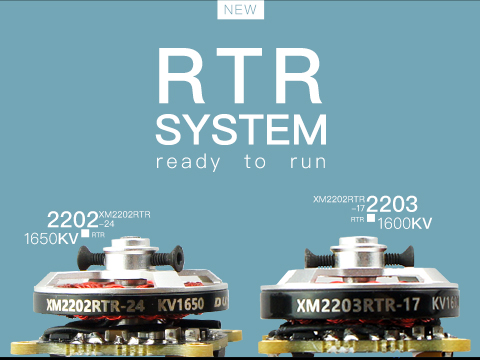

High torque windingXmotor 2202RTR & 2203RTR Features

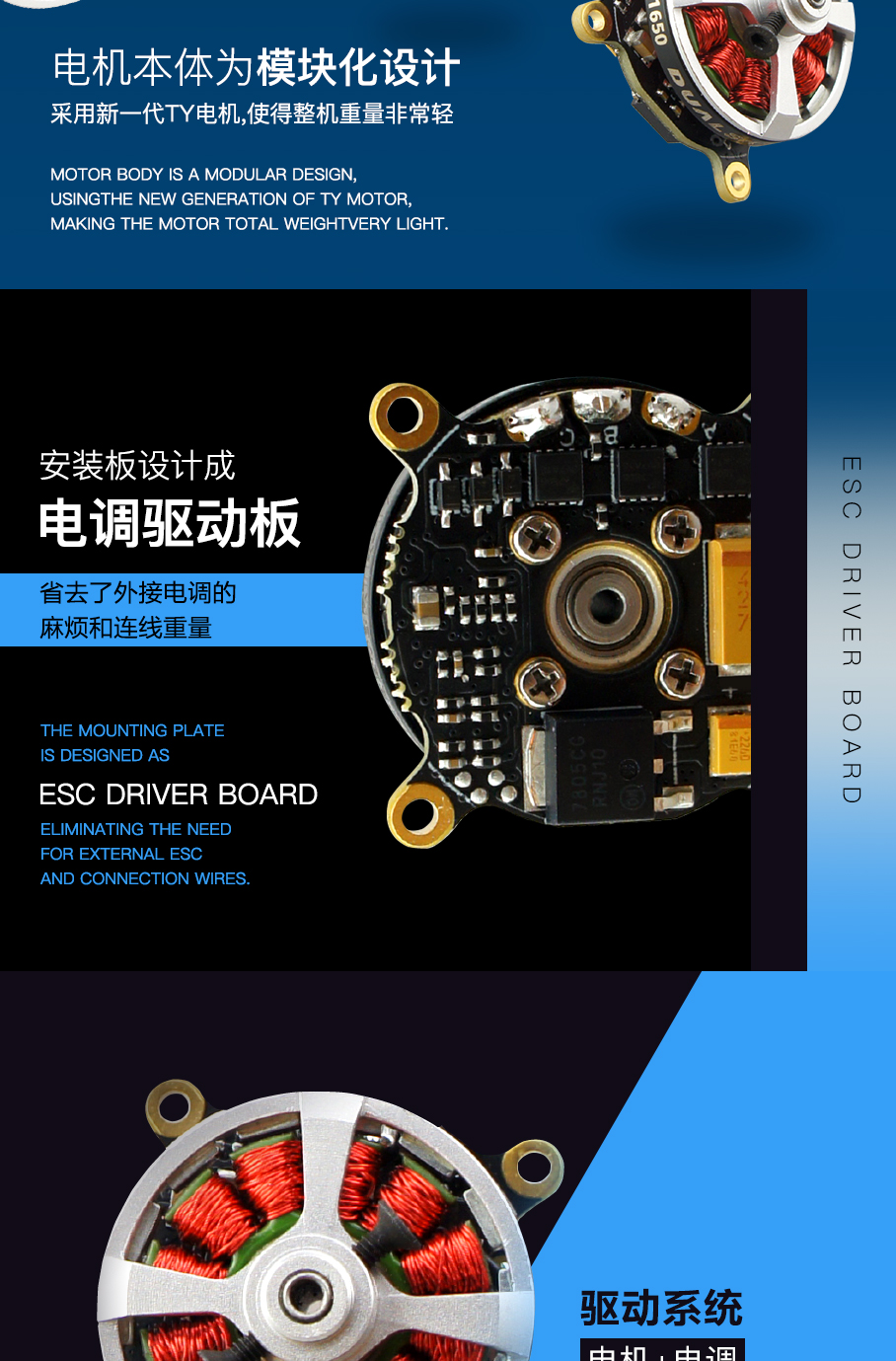

1. Motor body is a modular design, usingthe new generation of TY motor, making the motor total weightvery light.
2. The mounting plate is designed as ESC driver board, eliminating the need for external ESC and connection wires.
3. Drive system (motor + ESC) is light weight, about 5 grams lighter than the combination of motor and ESC.
4. Motor outlet wiresis soldered at the edge of the ESC, easy to change the direction of motor rotation (by default it is counter-clockwise).
5. TY motor module and ESC are screwed, with good structural strength.
6. The ESC is designed compactly, all parts are within 27mm in diameter
7. ESC uses high quality MosFET, peak current can be up to 25 amps

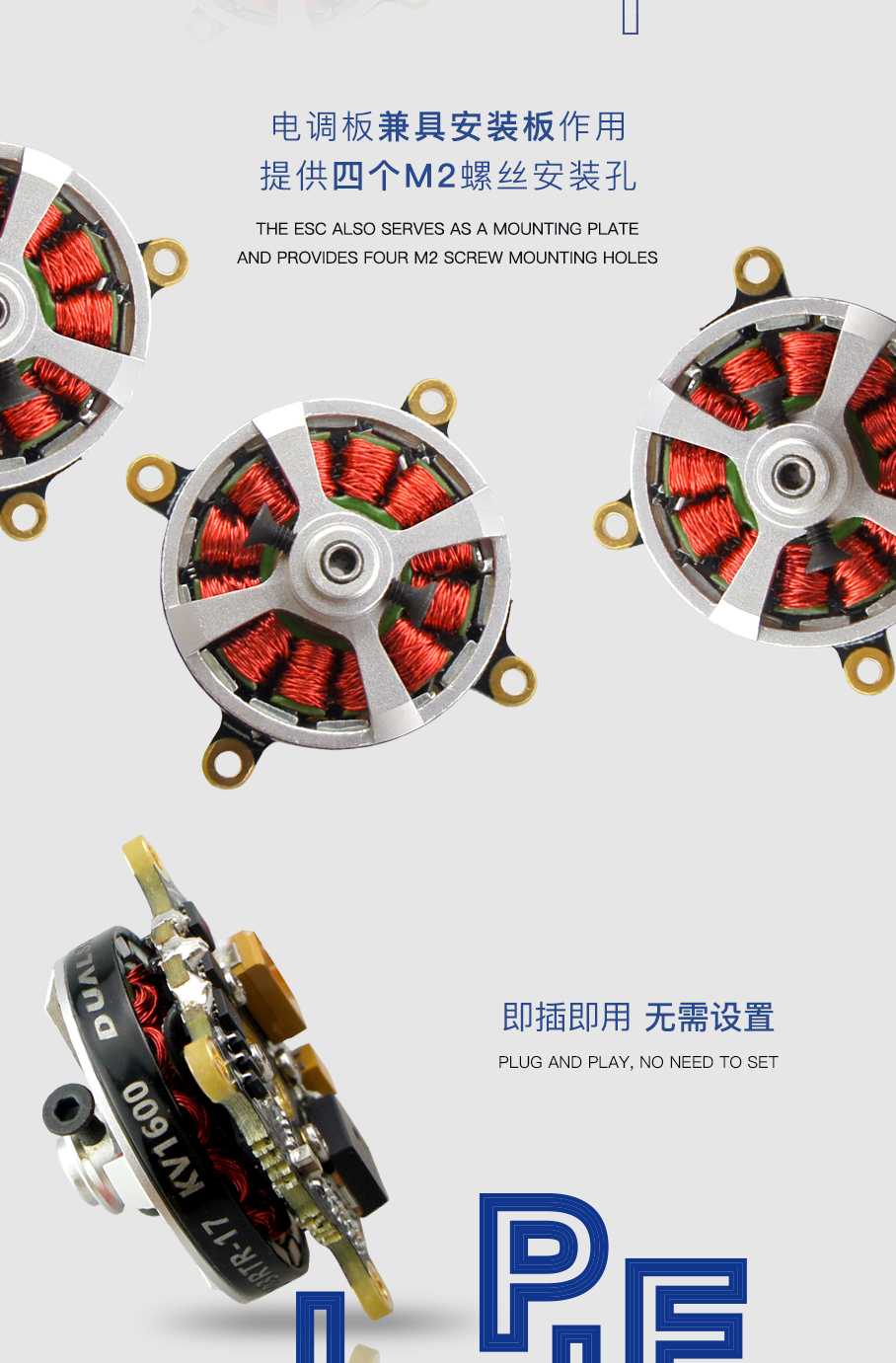

8. The ESC also serves as a mounting plate and provides four M2 screw mounting holes
9. Plug and play, no need to set. Simple the best.
10. We believe that this generation of RTR motors will certainly bring more convenient experience for indoor flying.
|

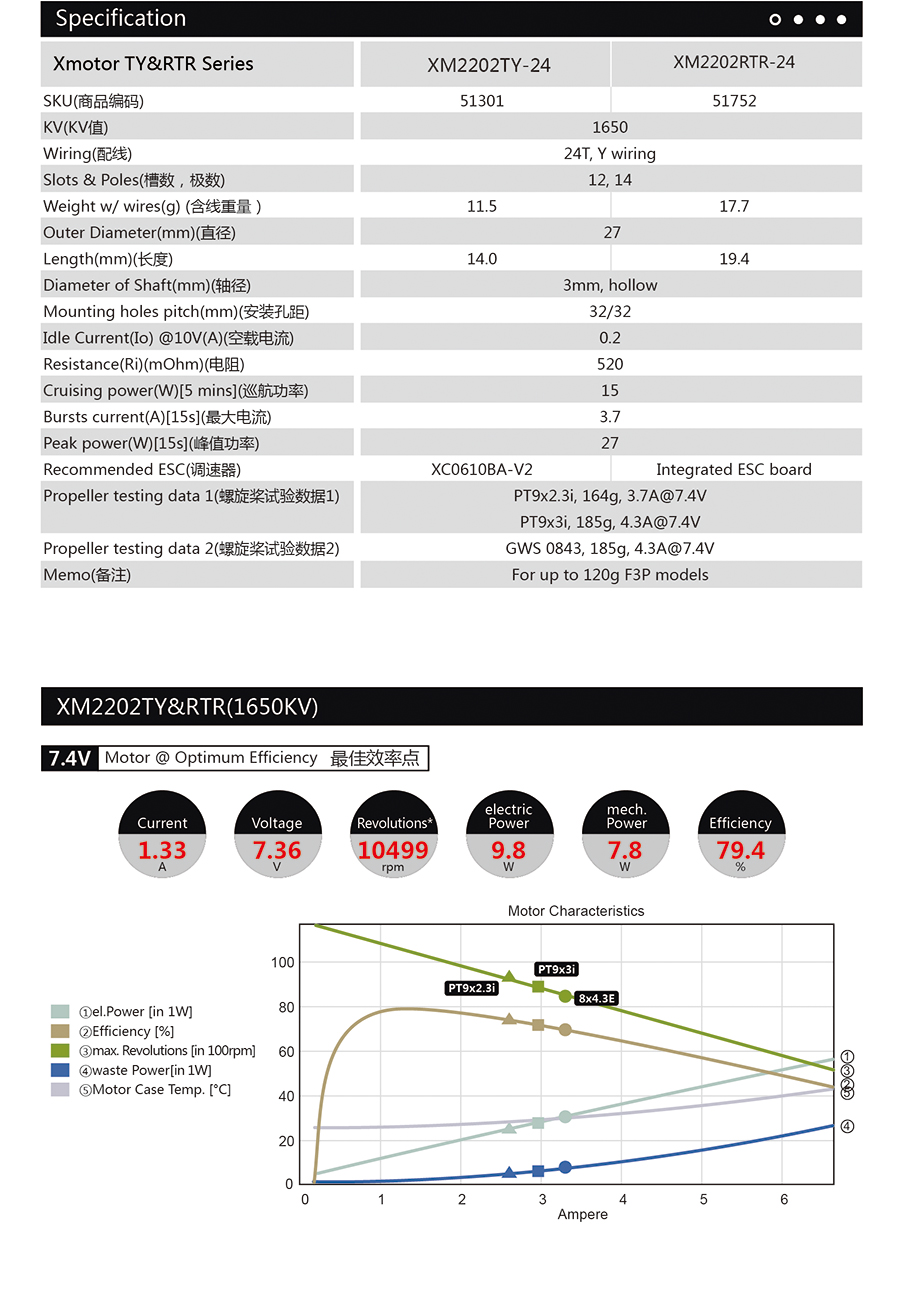

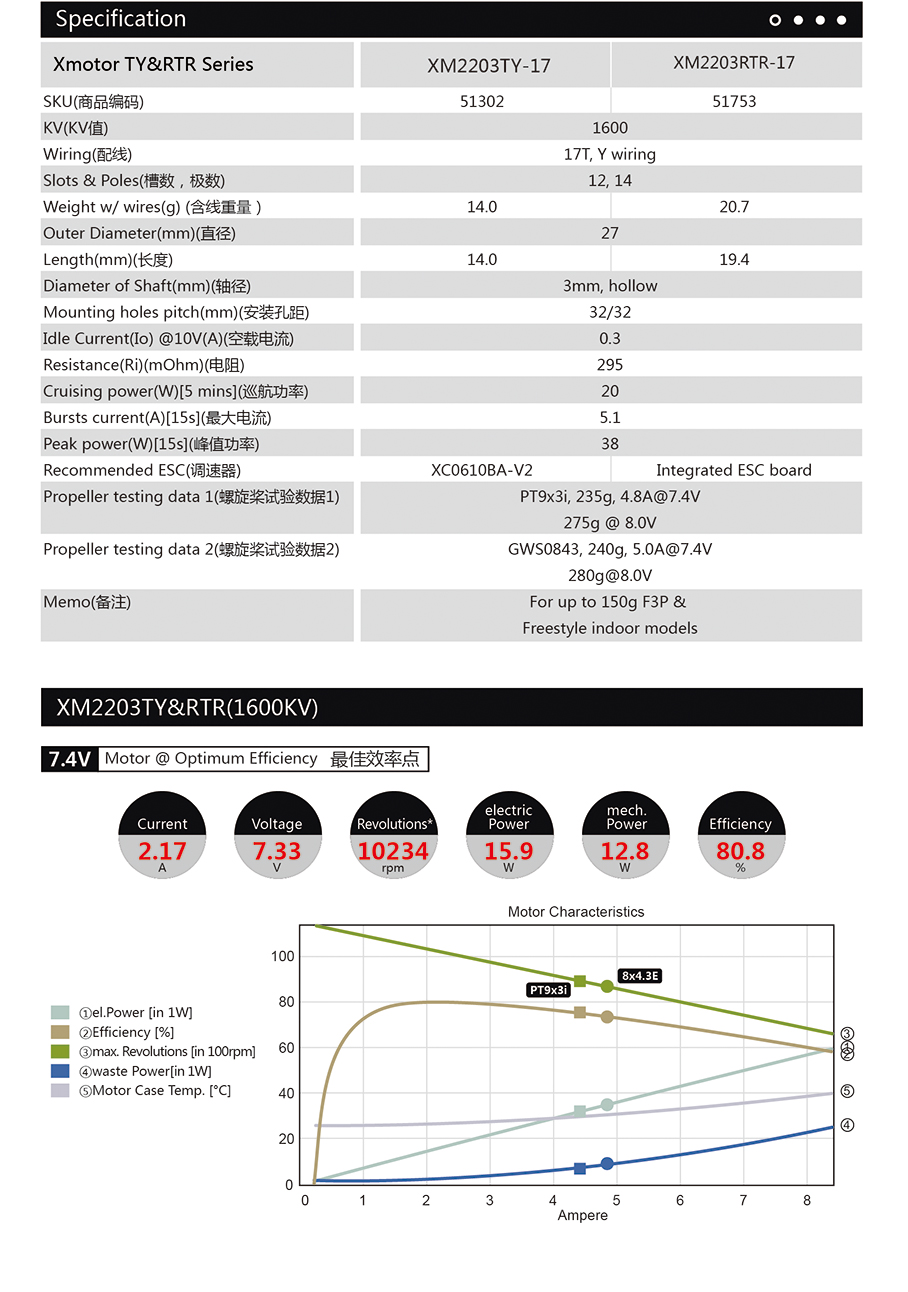

Xmotor Typhoon Indoor Series Specifications |

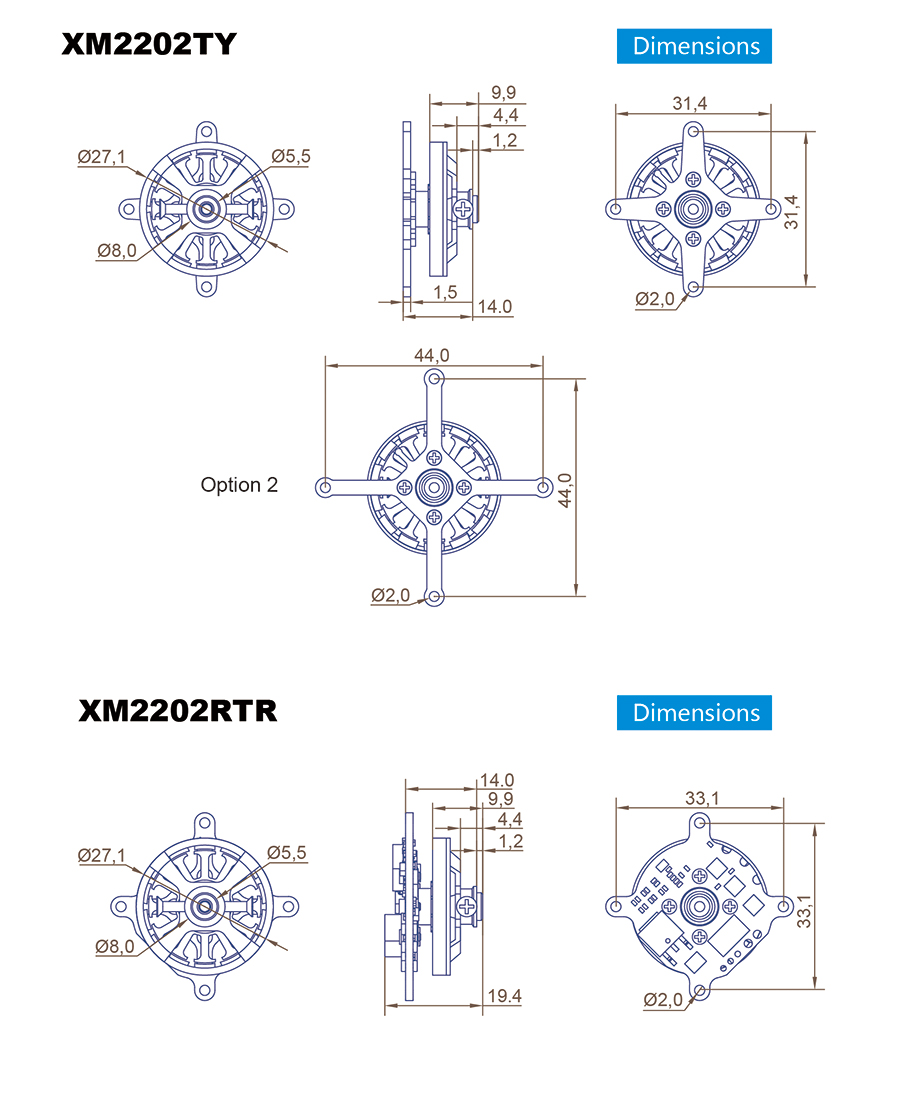

XM2202TY-24 |
XM2202RTR-24 |

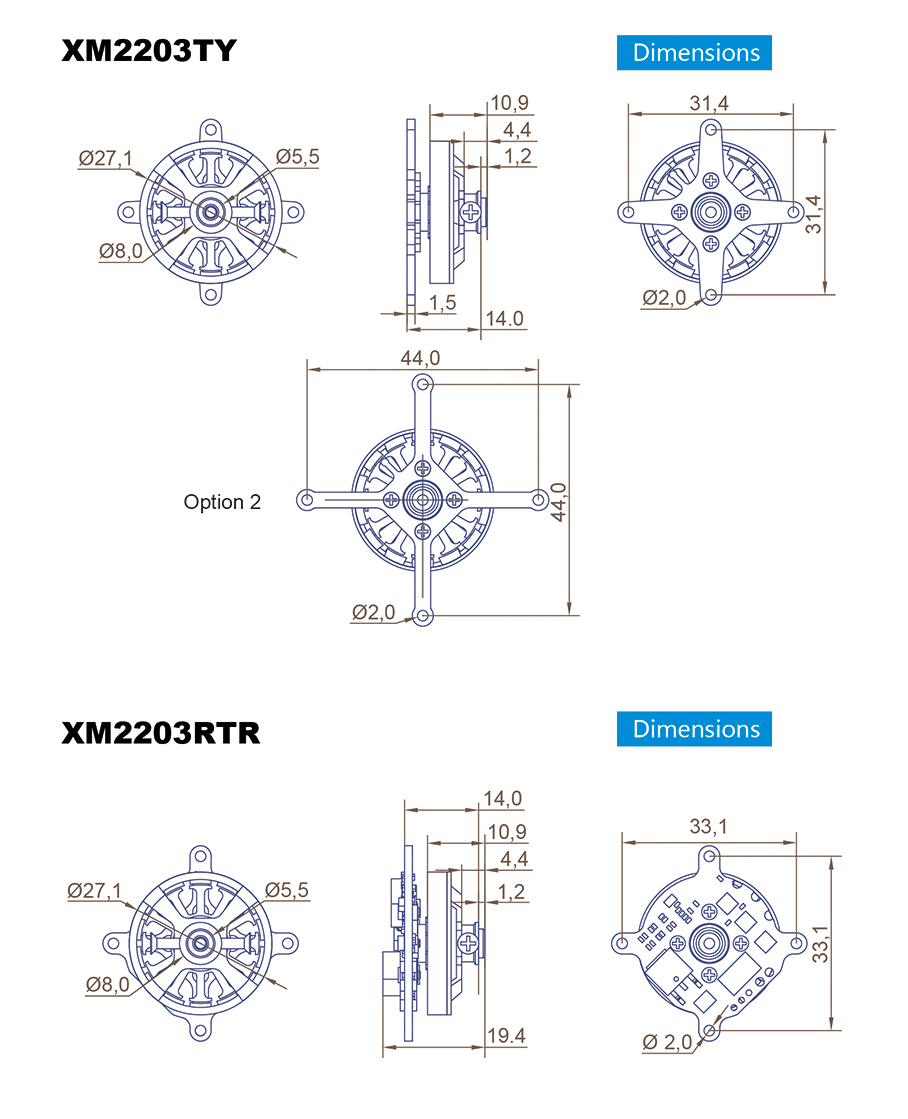

XM2203TY-17 |
XM2203RTR-17 |

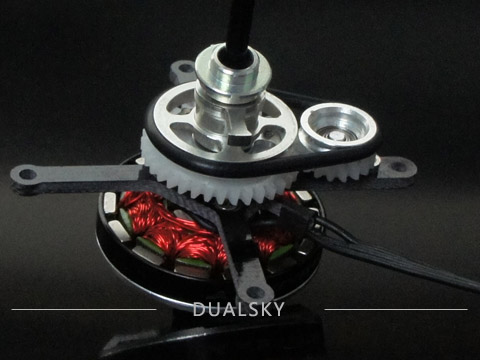

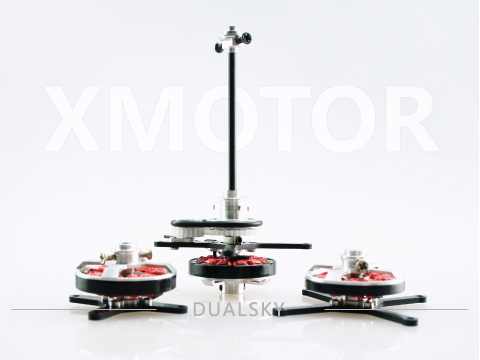

XM2203TY-24CR Contra Rotating Edition |
|
RPM/V (KV) |
1650 | 1650 | 1600 | 1600 | 1080 |
|
Item No. |
51301 | 51752 | 51302 | 51753 | 51303 |
|
Diameter of Shaft(mm) |
3mm, hollow |
3mm, hollow |
3mm, hollow |
3mm, hollow |
2.5mm, carbon fiber |
